Noise-Free Cryogenic Infrastructure in Quantum Hardware
Author: Ainsley Rufer, ColdEdge Technologies Inc.
Author: Ainsley Rufer, ColdEdge Technologies Inc.
Abstract
The performance of quantum and precision measurement systems depends not only on electronic control, but also on the vibrational and thermal conditions at the cryogenic stage. Cryogenic noise remains a limiting factor in scalable quantum architectures.
This article presents two engineered approaches that mitigate potential interferences at the 4 K stage and beyond. Recent designs from ColdEdge Technologies are gaining popularity for decoupling the challenge of cooling power to mechanical noise, allowing 100% thermal transfer with less than 10 nanometers of displacement at the experimental sample space.
______________________________
1. Introduction
Cryogenics has traditionally been treated as background equipment for complex quantum technology - however, the performance of superconducting and trapped ion devices increasingly depends on the stability of their thermal environment.
At 4 K, even small-scale temperature variations, magnetic/electrical interference, vacuum levels, or motion can disrupt quantum systems’ accuracy.
Traditional closed-cycle solutions provide reliable low temperatures but introduce vibration, temperature variation, and electromagnetic noise through reciprocating motion and pressure oscillations in the working gas. These effects, when attached directly to the experimental stage, limit achievable performance.
The modern challenge is delivering several watts of cooling power at 4 K without transmitting noise levels that compromise experimental sensitivity.
______________________________
2. Architecture and Design
ColdEdge Technologies has developed a modular cryogenic framework intended to isolate the cooling engine from the experimental interface and simultaneously increase thermal performance. The design consists of two complementary components:
The ULVQ gas-gap interface transfers 100% of the 2nd stage cooling capacity while physically decoupling the cold head from the rest of the interface. A sealed helium gas column conducts heat across a controlled gap, eliminating direct mechanical contact. Current systems transmit up to 5 W of cooling power at 4.2 K with a measured displacement of < 10 nm at the sample position. ColdEdge expects to release a 10 W at 4.2 K model by January 2026.

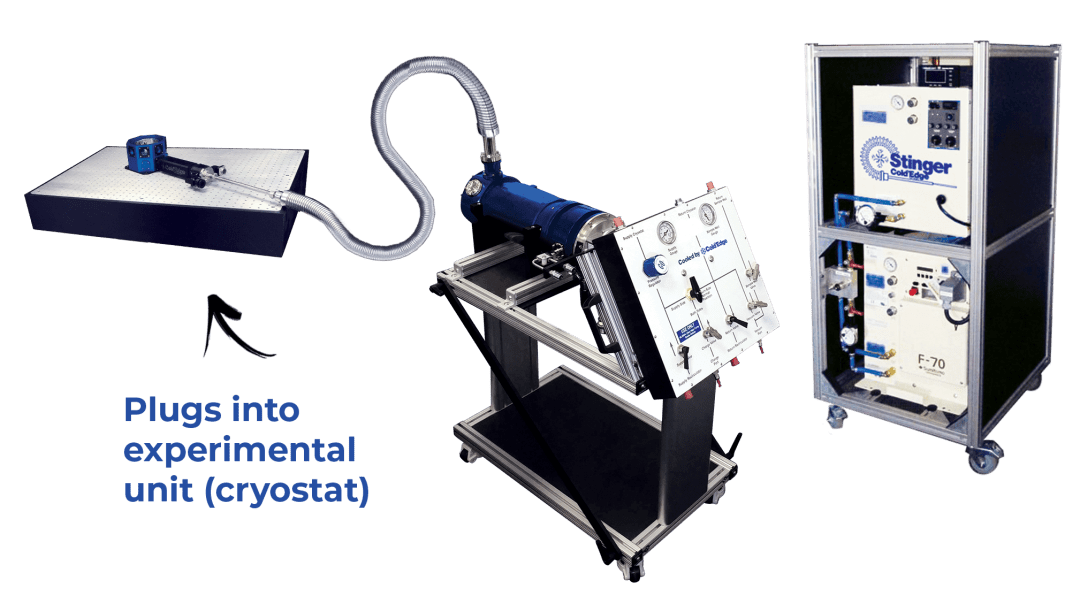

The StingerQ flexible system provides independent closed-cycle cooling for 4K cold points and auxiliary heat loads, such as higher temperate devices operating at >4K and cabling efficiency. Delivering 1.5 W at 4.2 K, the StingerQ flexible transfer line and remote compressor placement (up to 20 m) reduces vibrational coupling and acoustic transmission significantly. The next model, powered up to 3 W at 4.2 K, is projected for December 2025 release.
______________________________
3. Performance and Integration
Introducing one or both components upgrades laboratory setups to ultra-high-power, ultra-low-vibration, and fully closed-cycle. The average effective amplitude of vibration at the sample position is consistently less than 10 nanometers, taking into account both positive and negative deviations over time. Comparative measurements against direct-mounted cold heads show a tenfold reduction in vibration at the experimental space after incorporating a ULVQ / StingerQ.
These systems have active applications in dilution refrigerator setups, trapped ions work, and hybrid quantum assemblies. Thermal drift over 24 hours remains within tens of millikelvin, allowing continuous operation without recalibration. Ultra-high-vacuum (UHV) and magnetic, electrical (EMI), and acoustic noise shielding are also built into the designs.
The modular approach simplifies integration: existing cryogenic systems can be upgraded by replacing only the interface and transfer components, preserving the rest of the assembly.
______________________________
4. Discussion
Repeat test data indicates that mechanical isolation can be achieved without sacrificing cooling capacity. The ability to control vibration, temperature stability, and acoustic transmission as separate parameters allows the experiment to be designed around performance goals rather than equipment limitations.
As device counts and experimental durations increase, reproducible cryogenic behavior becomes essential for scaling. Stable and efficient cold, maintained over time, is the foundation upon which higher-level quantum processes build.
______________________________
5. Conclusion
Cryogenics set the operational boundary of quantum hardware. The results presented here suggest that the next phase of quantum development will be driven not just by code, but targeted mechanical engineering. By co-designing isolation and thermal transfer, ColdEdge overcomes limitations that have persisted for years among closed-cycle options.
To learn more about the ULVQ and StingerQ series, consider stopping by BOOTH 3 at the NYC Q+AI Summit this year. ColdEdge Technologies has exclusive product displays and in-person engineers to discuss your unique experimental needs.
Or, contact us online at www.ColdEdgeTech.com any time.
